#ProductHousingCableConnectorProgrammerNotes
1Arco OTE 2 / 6 / 6AD / 12OTEBlack-5xFlexstrip XtendPads (4-pin)AllMust use Flexstrip XtendPads, not regular Flexstrip CS54.
2Arco RIC 2 / 6 / 6AD / 12RICBlack-5xFlexstrip XtendPads (4-pin)AllMust use Flexstrip XtendPads, not regular Flexstrip CS54.
3BTE 278P / 478P+BTEGray-4xNoneAll
4BTE D60P+BTEGray-4xNoneAll
5BTE D55ADBTEBlack-5xFlexstrip CS54 (4-pin) with Flexstrip "Pyramid" Adapter, or Flexstrip XtendPads (4-pin)All
6BTE D70HPBTEGray-4xNoneAll
7BTE D55PBTEGray-4xNoneAll
8Boost 4 / 6 / 12Super PowerBlack-5xNoneAll
9Briza 2 / 2+ / 2ER / 4 / AD / 12OTEGray-4xFlexstrip CS54 (4-pin)All
10Fino 2 / 4 / 6 / 12RICBlack-5xFlexstrip CS54 (4-pin)All
11Fino 4 / AD (1st Gen)RICGray-4xFlexstrip CS54 (4-pin)HI-PRO, EMiniTec (v1)NOAHlink or EMiniTec2 programmers will only work with special Gray-3x cables.
12IIC FamilyIICCable Pill 10A Left
Cable Pill 10A Right
NoneAllCables are side and battery size specific. Select from: Cable Pill 10A, Cable Pill 13, Cable Pill 312. Some IIC products may use flexstrips instead, which require using Gray-4x cables instead.
13InstaFIT ZircStockCable Pill 10A Left
Cable Pill 10A Right
NoneAllCables are side and battery size specific. Select from: Cable Pill 10A, Cable Pill 13, Cable Pill 312
14InstaFIT 2ER / 4+ (with VC)StockGray-4xBattery Door 10A Pill Adapter (Left)
Battery Door 10A Pill Adapter (Right)
AllAdapters are side specific.
15InstaFIT 2ER / 4+ (without VC)StockGray-4xFlexstrip CS54 (4-pin)All
16Intuir 2 / 2FC / 4 / 4DBTEGray-4xNoneHI-PRO, EMiniTec (v1)NOAHlink or EMiniTec2 programmers will only work with special Gray-3x cables.
17Intuir 2 / 2+ / 2FC / 2FC+ / 2ER / 4 / 4+ / 4D / 4AD / 6 / 12ITEGray-4xNone or Flexstrip CS54 (4-pin)All
18Intuir (Stock Canal) 2 / 2+ / 2FC / 2FC+ / 2ER / 4 / 4+ / 4D / 4AD / 6 / 12StockCable Pill 10A Left
Cable Pill 10A Right
NoneAllCables are side and battery size specific. Select from: Cable Pill 10A, Cable Pill 13, Cable Pill 312
19Ligero 2P BTE / 2P+BTEGray-4xNoneAll
20Smart 16ITEGray-4xNone or Flexstrip CS54 (4-pin)All
21Veloz (1st Gen)OTEGray-4xNoneAllVeloz products manufactured before Sep 2013 require Gray-4x cables. Products starting Sep 2013 (with serial number 13-1256xx or higher) require Black-5x cables.
22Veloz 4 / 6 / 12OTEBlack-5xNoneAllVeloz products manufactured before Sep 2013 require Gray-4x cables. Products starting Sep 2013 (with serial number 13-1256xx or higher) require Black-5x cables.
23ZircIICCable Pill 10A Left
Cable Pill 10A Right
NoneAllCables are side and battery size specific. Select from: Cable Pill 10A, Cable Pill 13, Cable Pill 312

Cables

These are all the supported Cables.

NameCableCompatibilityNotes

Gray-4x

Unitron, Phonak, GNResoundMostly used for custom products.

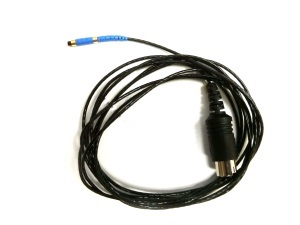

Black-5x

Siemens, Oticon, Bernafon, PHSIMostly used for newer stock products.

Cable Pill 10A Left

NoneCables are side and battery size specific. Select from: Cable Pill 10A, Cable Pill 13, Cable Pill 312.

Cable Pill 10A Right

NoneCables are side and battery size specific. Select from: Cable Pill 10A, Cable Pill 13, Cable Pill 312.

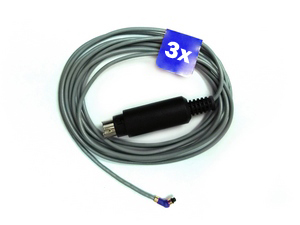

Gray-3x

NoneUse only with NOAHlink or EMiniTec2 programmers reading Intuition BTE's or nVe OTE's.

Connectors

These are all the supported connectors.

NameConnectorNotes

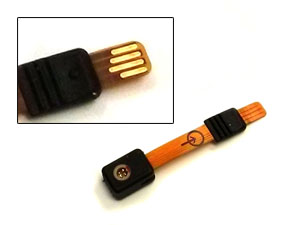

Flexstrip CS54 (4-pin)Not compatible with all products that require flexstrips. Use Flexstrip XtendPads for full compatibility.

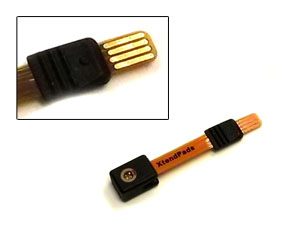

Flexstrip XtendPads (4-pin)Compatible with any product that needs Flexstrip CS54 (4-pin). However, the reverse is not true. Recommended flexstrip for all products.

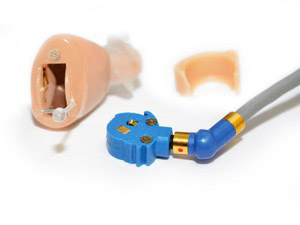

Battery Door 10A Pill Adapter (Left)Must remove battery door. Adapter is side specific.

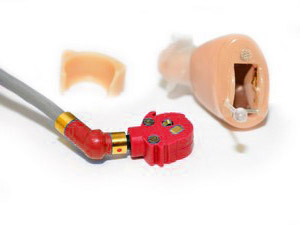

Battery Door 10A Pill Adapter (Right)Must remove battery door. Adapter is side specific.

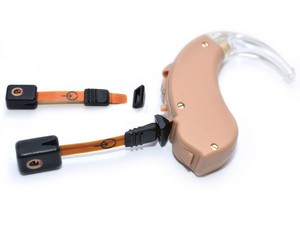

Flexstrip "Pyramid" AdapterRequired in some products when using Flexstrip CS54 (4-pin). Must put flexstrip through "pyramid" adapter. "Pyramid" adapter not required when using Flexstrip XtendPads (4-pin).

Programmers

These are all the supported programmers in fitPRO.

NameProgrammersData Cable

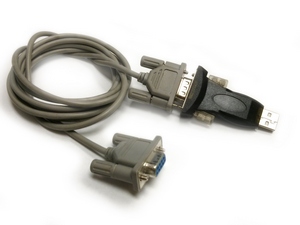

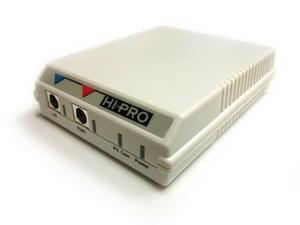

HI-PRO (Classic)Null-modem serial cable, with USB-serial adapter

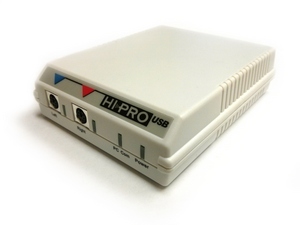

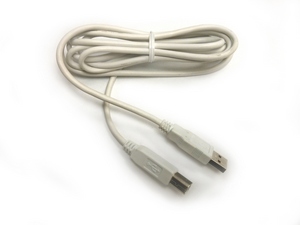

HI-PRO (USB)USB cable

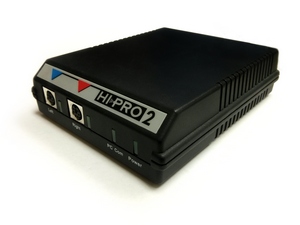

HI-PRO 2 (USB)USB cable

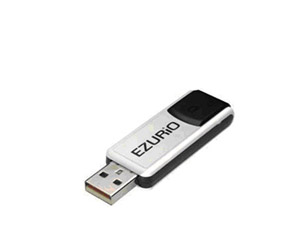

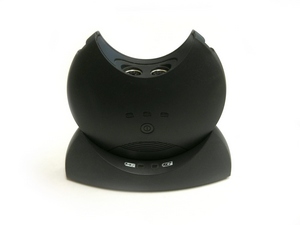

NOAHlinkWireless Bluetooth adapter (no cable)

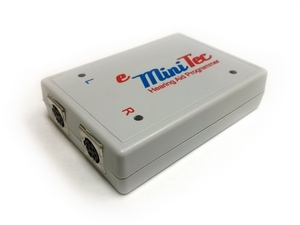

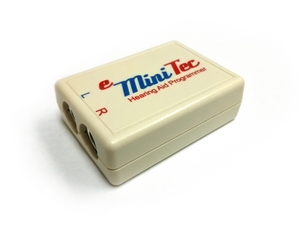

EMiniTec (v1)USB cable
EMiniTec 2USB cable

Housings

These are all the supported housings.

NameTypeHousingConnectionCableConnectorNotes

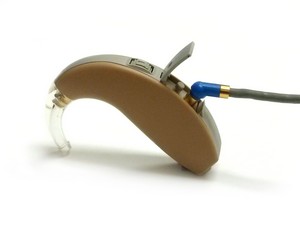

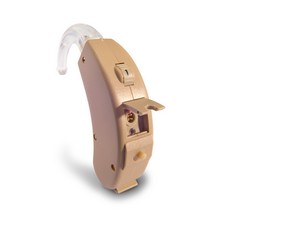

BTE ClassicBTEGray-4xNoneUse socket.
BTE EuroBTEBlack-5xFlexstrip CS54 (4-pin) with Flexstrip "Pyramid" Adapter, or Flexstrip XtendPads (4-pin)
BTE IntBTEGray-4xNoneUse socket. NOAHlink or EMiniTec2 programmers will only work with special Gray-3x cables.

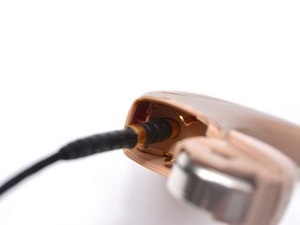

BTE (Super Power)BTE (Super Power)Black-5xNoneUse socket inside battery compartment.

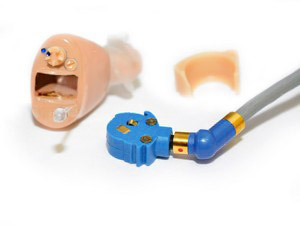

InstaFIT (with VC)StockGray-4xBattery Door 10A Pill Adapter (Left)
Battery Door 10A Pill Adapter (Right)
Must remove battery door. Adapter is side specific.

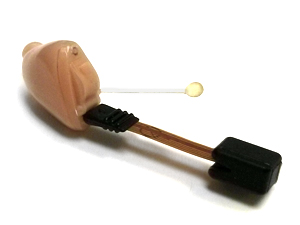

InstaFIT (without VC)StockGray-4xFlexstrip CS54 (4-pin), or Flexstrip XtendPads (4-pin)Use flexstrip.

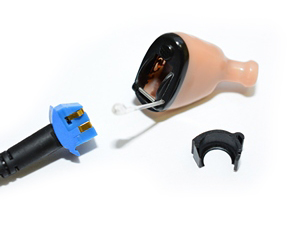

InstaFIT (IIC)StockCable Pill 10A Left
Cable Pill 10A Right
NoneMust remove battery door. Cables are side and battery size specific. Select from: Cable Pill 10A, Cable Pill 13, Cable Pill 312.

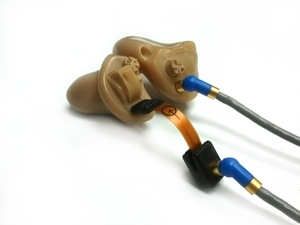

ITE (Custom)ITE (Custom)Gray-4xNone, or Flexstrip CS54 (4-pin) / Flexstrip XtendPads (4-pin)Use socket or flexstrip, depending how it was ordered.

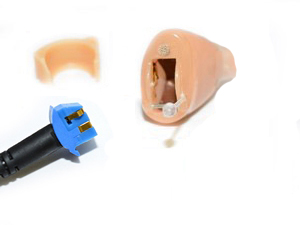

IIC Beige (Custom)IIC (Custom)Gray-4xNone, or Flexstrip CS54 (4-pin) / Flexstrip XtendPads (4-pin)Use socket or flexstrip, depending how it was ordered.

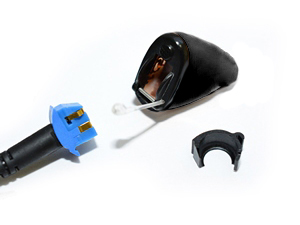

IIC Black (Custom)IIC (Custom)Cable Pill 10A Left
Cable Pill 10A Right
NoneMust remove battery door. Cables are side and battery size specific. Select from: Cable Pill 10A, Cable Pill 13, Cable Pill 312.
MRICRICBlack-5xFlexstrip CS54 (4-pin)Slightly open battery door while inserting flexstrip, then completely close the door.

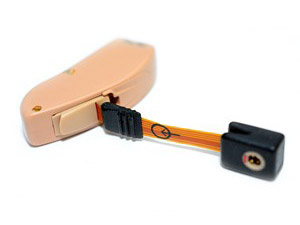

OTE v1OTEGray-4xFlexstrip CS54 (4-pin), or Flexstrip XtendPads (4-pin)Insert flexstrip in slit below push-button in battery door, and completely close the door.

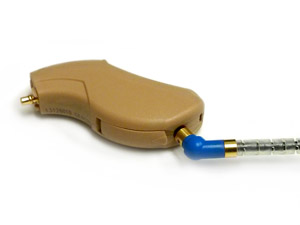

OTE v2OTEBlack-5xFlexstrip CS54 (4-pin), or Flexstrip XtendPads (4-pin)Use socket. Products manufactured before Sep 2013 require Gray-4x cables. Products starting Sep 2013 (with serial number 13-1256xx or higher) require Black-5x cables.

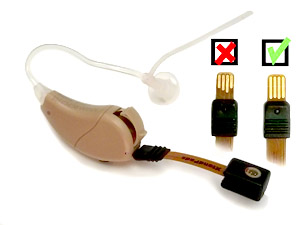

OTE v4OTEBlack-5xFlexstrip XtendPads (4-pin)Must use Flexstrip XtendPads (4-pin) only. Slightly open battery door while inserting flexstrip, then completely close the door.

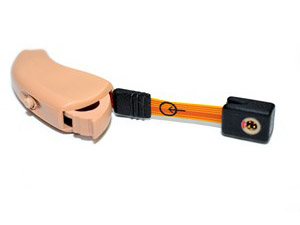

RIC v1RICGray-4xFlexstrip CS54 (4-pin), or Flexstrip XtendPads (4-pin)Distinguishing characteristic: bump on each side. Slightly open battery door while inserting flexstrip, then completely close the door. NOAHlink or EMiniTec2 programmers will only work with special Gray-3x cables.
RIC v3RICBlack-5xFlexstrip CS54 (4-pin), or Flexstrip XtendPads (4-pin)Distinguishing characteristic: depression on each side. Slightly open battery door while inserting flexstrip, then completely close the door.

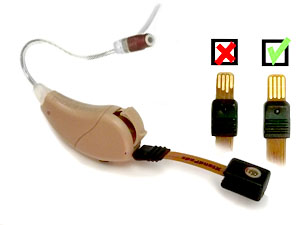

RIC v4RICBlack-5xFlexstrip XtendPads (4-pin)Must use Flexstrip XtendPads (4-pin) only. Slightly open battery door while inserting flexstrip, then completely close the door.

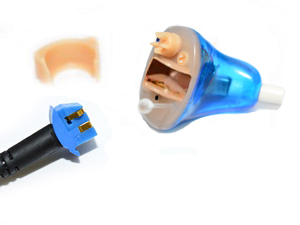

Stock CanalStockCable Pill 10A Left
Cable Pill 10A Right
NoneMust remove battery door. Cables are side and battery size specific. Select from: Cable Pill 10A, Cable Pill 13, Cable Pill 312.
